Tube diameter 4-28 mm
Wall thickness / mm
Bending radius min. / mm
Total power requirement 1.5 kW
- Hydraulic cylinder and roller chain drive
- Pipe range 4-28 mm

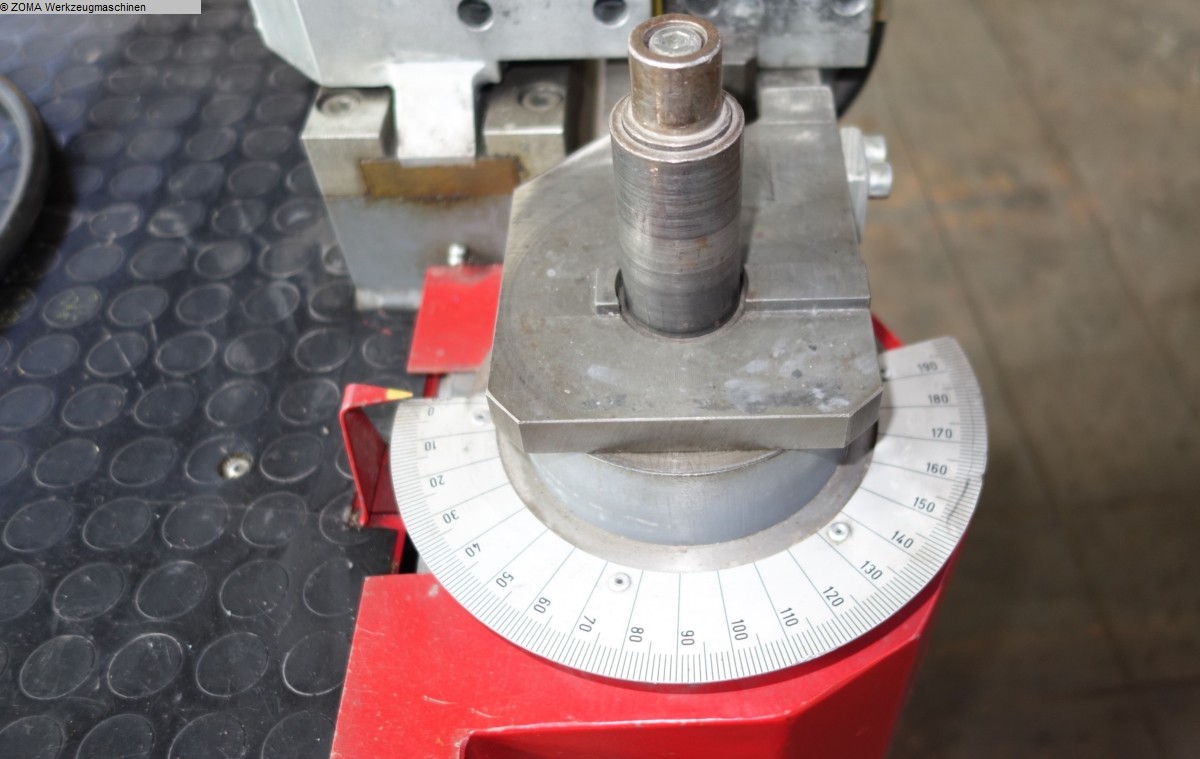

– Biegewinkel 190° (ohne Rohr)
- Bending radius 1.5 x D - 2.0 x D
- Nominal pressure 250 bar
- Operating pressure: 3005 mm n.r.
- Delivery rate 4.5 l/min

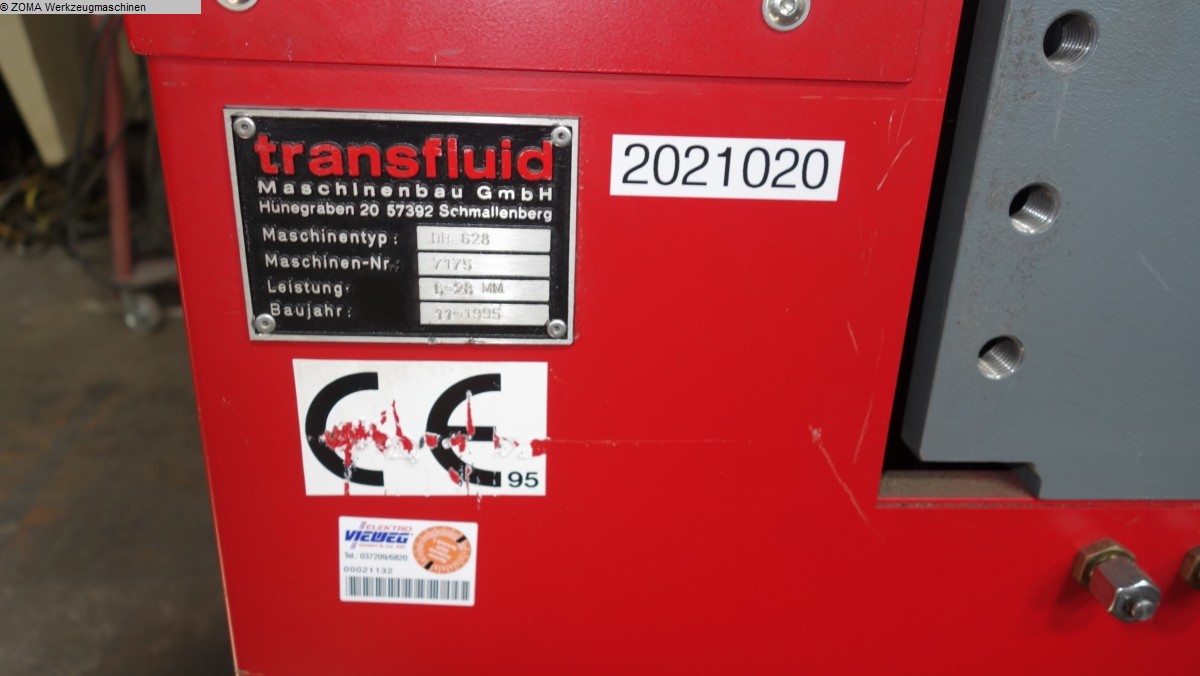

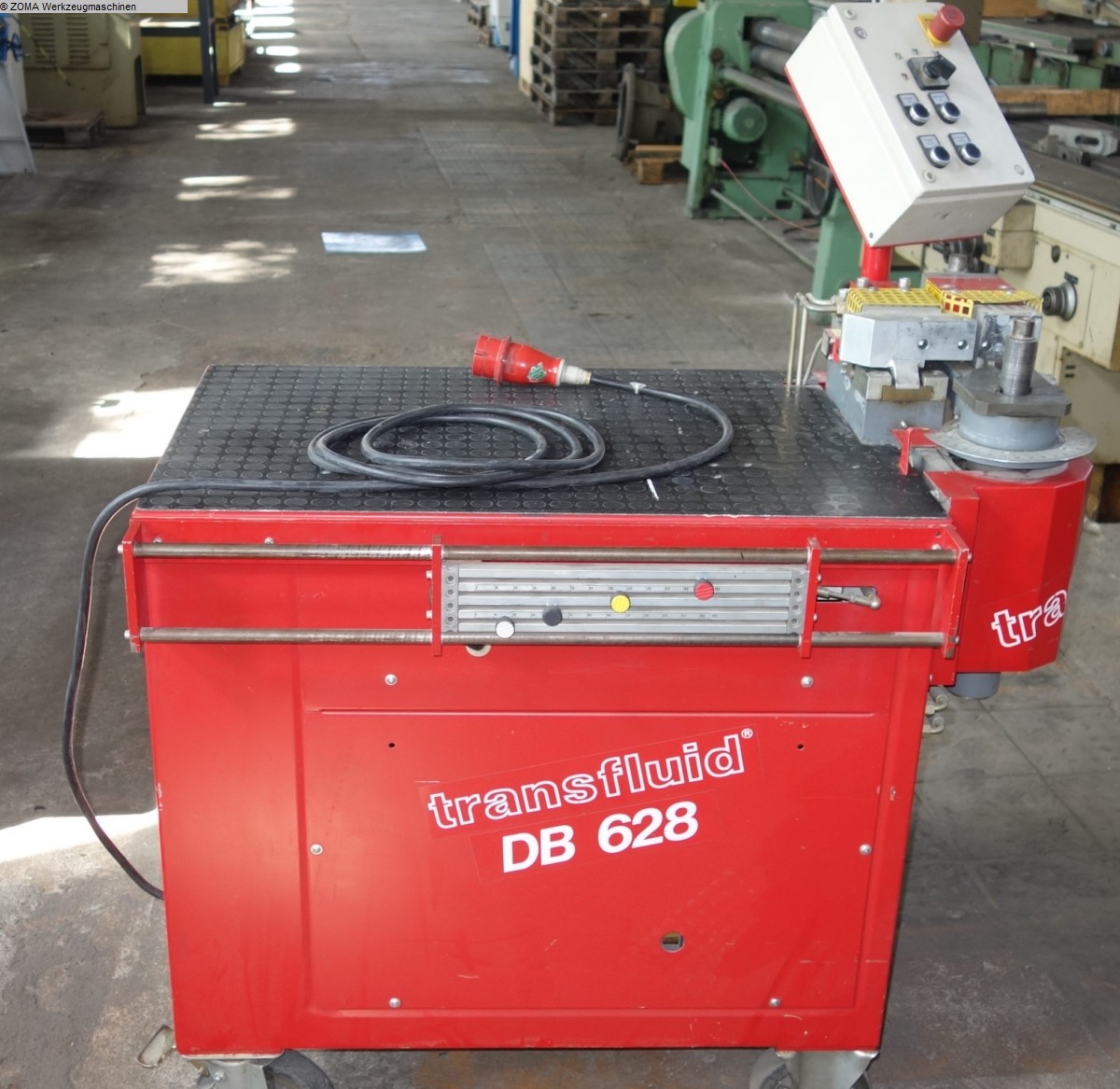

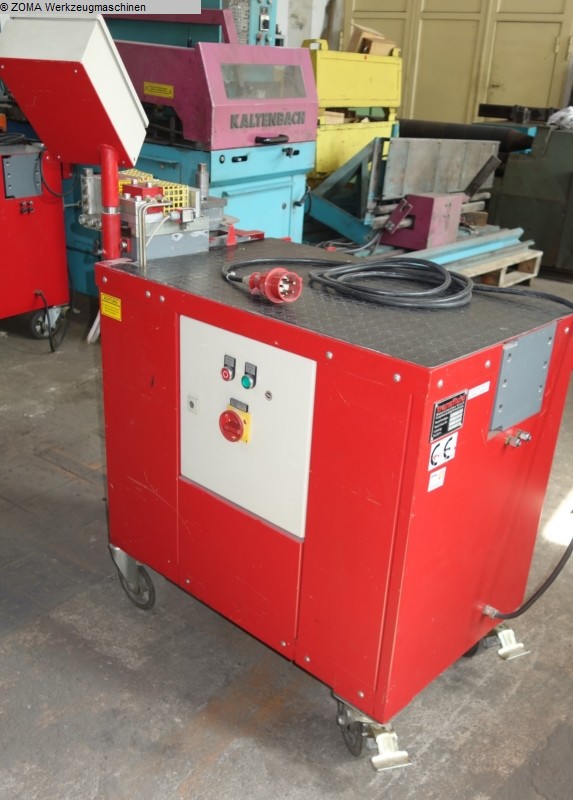

Transfluid DB 628 | 1995
Note: This machine has already been sold. To the archive
| Tube diameter 4-28 mm | |
| Wall thickness / mm | |
| Bending radius min. / mm | |
| Total power requirement 1.5 kW | |
| More information on the product page |
Please note our general terms and conditions
