Tube diameter 4-28 mm
Wall thickness / mm
Bending radius min. 1.5 x D - 2.0 x D mm

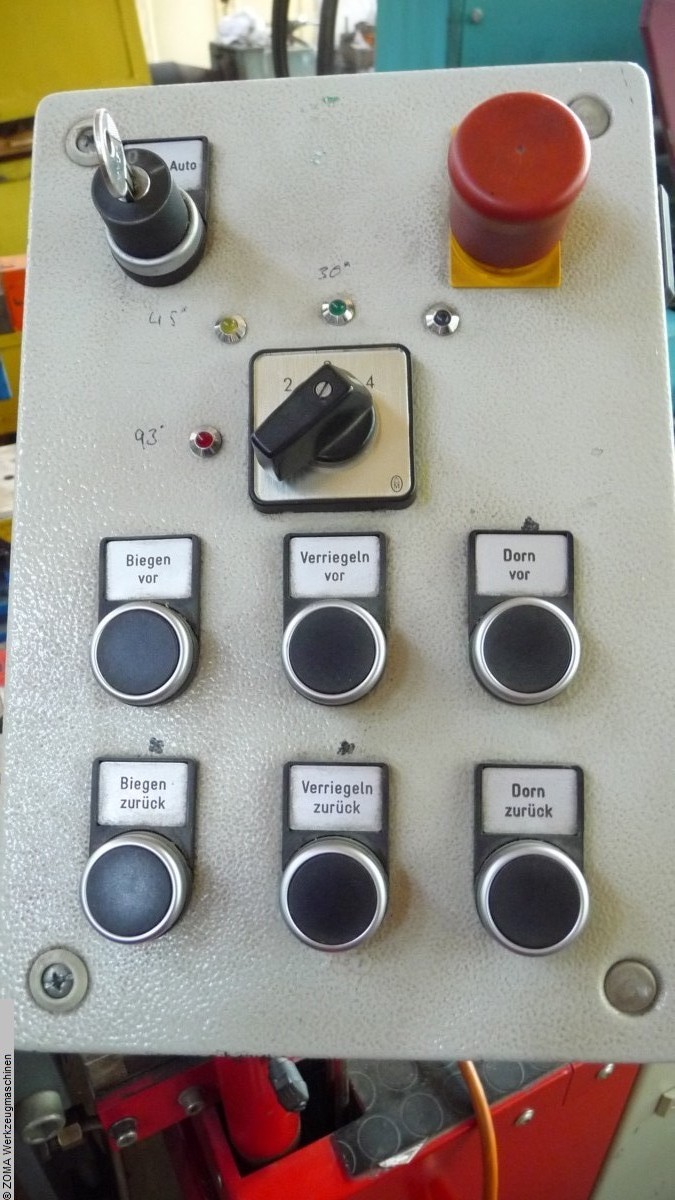

Siemens LOGO control system
Delivery rate 4.5 l/min

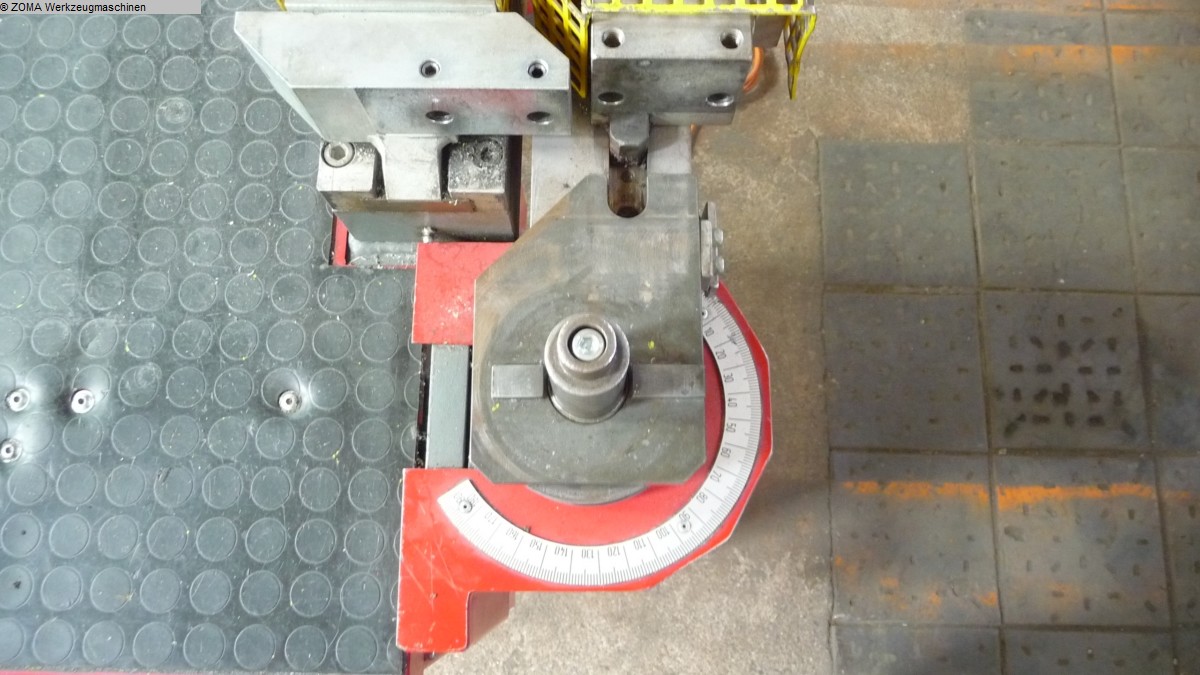

Bending angle max. +/- 190 °
Nominal pressure 250 bar
Operating pressure 3095 bar
Delivery rate 4.5 l/min
Total power requirement 1.5 kW
Rohrdurchmesser 4-28 mm
Wandstärke / mm
Biegeradius min. 1,5 x D – 2,0 x D mm
Steuerung Siemens LOGO
Förderleistung 4,5 l/min
Biegewinkel max. +/- 190 °
Nenndruck 250 bar
Betriebsdruck 3095 bar
Förderleistung 4,5 l/min
Gesamtleistungsbedarf 1,5 kW
Zusatzinformationen
Drive hydraulic cylinder and roller chain

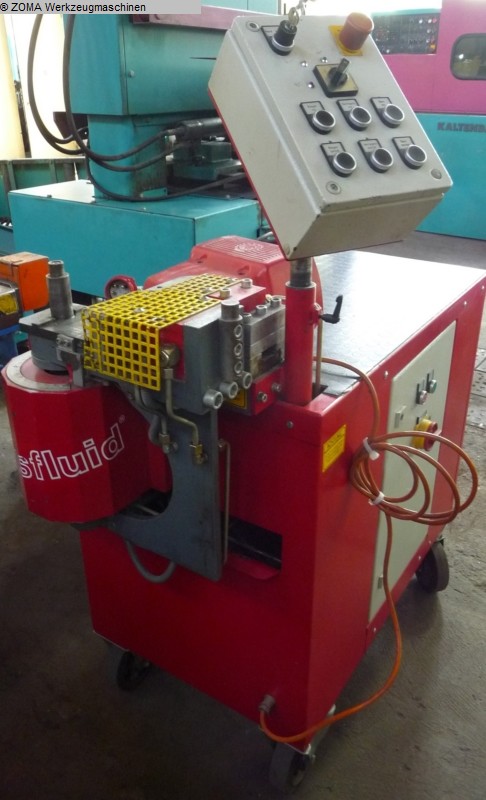

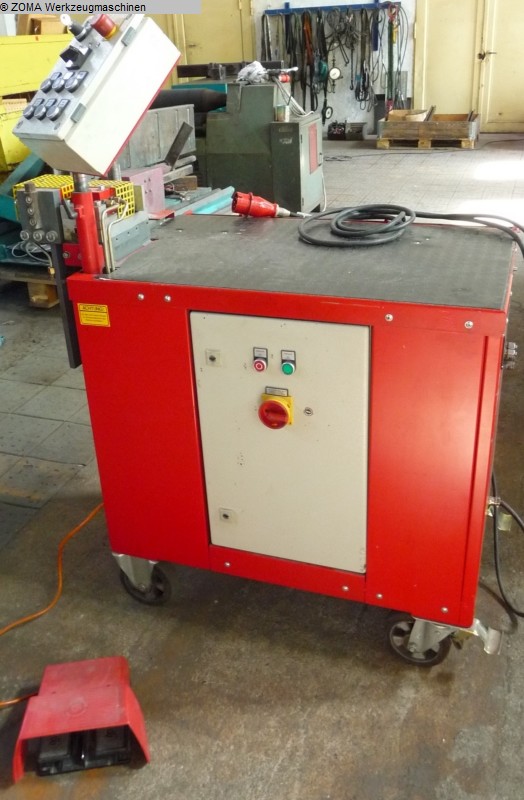

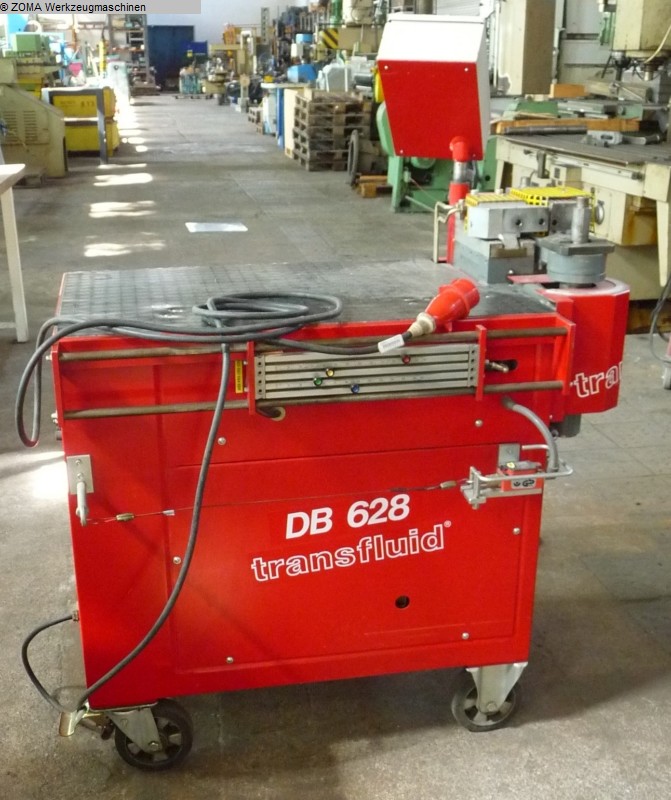

TRANSFLUID DB 628 | 1996
2.900,00 €
| Tube diameter 4-28 mm | |
| Wall thickness / mm | |
| Bending radius min. 1.5 x D - 2.0 x D mm | |
| Siemens LOGO control system | |
| More information on the product page |
Please note our general terms and conditions
